5 Steps to Install Freeze Plugs Like a Pro

Ever experienced the sinking feeling of discovering a cracked engine block due to a failed freeze plug? It’s a costly repair that can often be avoided with proper preventative maintenance. While seemingly insignificant, these small plugs play a vital role in protecting your engine from catastrophic damage during freezing temperatures. Furthermore, knowing how to install freeze plugs correctly is an essential skill for any DIY mechanic. This process may appear daunting at first, but with the right tools and a methodical approach, you can successfully replace your freeze plugs and safeguard your engine for years to come. This guide will provide a step-by-step walkthrough, offering practical tips and highlighting common pitfalls to ensure a smooth and successful installation. So, whether you’re a seasoned mechanic or a novice enthusiast, read on to discover the intricacies of this crucial engine maintenance task.

Before diving into the installation process, proper preparation is crucial. Firstly, ensure you have the correct freeze plugs for your specific engine. Using the wrong size or type can lead to leaks or even worse, damage to the block. Consult your vehicle’s service manual for the correct specifications. Secondly, gather the necessary tools, including a hammer, a freeze plug installation tool (highly recommended), a socket or piece of pipe slightly smaller than the plug’s diameter, safety glasses, and gloves. Additionally, you’ll need a suitable sealant, such as RTV silicone or an anaerobic sealant designed for engine applications. Moreover, thoroughly cleaning the block surface around the plug openings is paramount. Use a wire brush or scraper to remove any rust, debris, or old sealant, ensuring a smooth, clean surface for optimal adhesion. Finally, drain the coolant completely before beginning the installation. This will prevent any spills and ensure a clean working environment.

Now, with your preparations complete, it’s time to install the new freeze plugs. First, apply a thin, even bead of sealant around the outer rim of the plug. Avoid using excessive sealant, as this can squeeze into the cooling system and potentially cause blockages. Next, carefully position the plug over the opening in the engine block. Using the installation tool or a suitably sized socket and hammer, gently tap the plug into place until it sits flush with the block surface. However, avoid striking the plug directly with a hammer, as this can deform it and create leaks. Instead, focus the force on the outer edges of the plug. Subsequently, inspect the plug to ensure it’s seated correctly and evenly. If necessary, gently tap it further until it’s flush. Furthermore, allow the sealant to cure completely before refilling the cooling system. Refer to the sealant manufacturer’s instructions for the recommended curing time. Lastly, once the sealant has cured, refill the cooling system with the appropriate coolant mixture and check for any leaks. By following these steps carefully and methodically, you can successfully install freeze plugs and protect your engine from potential damage.

Gathering Your Tools and Materials for Freeze Plug Installation

Alright, so before you dive into swapping out those freeze plugs, let’s make sure you’ve got everything you need. Having the right tools and materials on hand will make the job go much smoother and save you a bunch of frustration down the line. Trust me, there’s nothing worse than getting halfway through a project only to realize you’re missing something crucial.

First things first, you’ll need the freeze plugs themselves. Make sure you get the right size and type for your engine. You can usually find this information in your vehicle’s repair manual or by checking with a parts supplier. Don’t just eyeball it – get the exact measurements to ensure a proper fit. A poorly fitting freeze plug is just asking for trouble.

Next, let’s talk tools. A good set of sockets and a ratchet are essential for removing and installing the plugs. You’ll also need a hammer, preferably a brass or rubber mallet to avoid damaging the new plugs during installation. A regular hammer will work in a pinch, but be extra careful not to dent or deform the plug. A block of wood can also be helpful to evenly distribute the force when hammering the plugs in.

To make sure you have a nice, clean surface for the new plugs, you’ll need some sandpaper or emery cloth to remove any rust or debris from the block around the plug openings. A wire brush can also be handy for this. And, of course, some shop rags or paper towels will be useful for cleaning up any mess.

For installing the plugs, some folks like to use a specialized freeze plug installer tool. While not strictly necessary, it can make the process a lot easier, especially in tight spaces. It basically helps you evenly seat the plug and reduces the risk of damaging it. If you’re planning on doing this job regularly, it’s a worthwhile investment.

Finally, a little bit of sealant can help ensure a watertight seal. A good quality RTV silicone sealant is ideal for this. Just a thin bead around the edge of the plug before installation should do the trick.

Here’s a quick rundown of everything in a handy table:

Preparing the Engine Block for Freeze Plug Replacement

Getting your engine block ready for new freeze plugs is crucial for a successful installation. This involves cleaning the block thoroughly, removing any rust or debris, and ensuring a smooth surface for the new plugs to seat against. A proper prep job prevents leaks and ensures your freeze plugs will last.

Cleaning the Block

Start by giving the engine block a good overall cleaning. Use a degreaser and a stiff brush to remove any grease, oil, or grime. This will give you a clearer view of the freeze plug holes and any potential issues.

Removing Old Freeze Plugs and Cleaning the Holes

Removing the old freeze plugs can be tricky. A common method involves tapping a chisel or punch into the edge of the plug to rotate it slightly within the hole. Once it’s turned a bit, you can usually pry it out. Another option is to use a specialized freeze plug removal tool, which often grabs the plug from the center, allowing you to pull it straight out. Sometimes, the plugs are incredibly stubborn, and a small slide hammer with a hook attachment can provide the extra force needed. If the plug is particularly rusted in place, penetrating oil can help loosen things up. Apply the oil, let it sit for a while, and then try removing the plug again. Be patient; sometimes it takes a few tries.

Once the old plugs are out, thoroughly clean the holes. This is where paying attention to detail really pays off. Any rust, debris, or remnants of the old plug will prevent the new plug from sealing correctly. Use a wire brush, emery cloth, or a rotary tool with a small sanding attachment to clean the surface of each hole. Make sure you remove all traces of rust and create a smooth, even surface. A clean hole ensures proper contact with the new plug and minimizes the chance of leaks. Inspect each hole carefully after cleaning to make sure there are no cracks or imperfections. If you find any damage, you might need to consult a professional for repair options.

For particularly stubborn rust or corrosion, consider using a chemical rust remover. Follow the manufacturer’s instructions carefully and ensure proper ventilation when using these products. After cleaning with a chemical remover, rinse the area thoroughly with water and dry it completely before installing the new freeze plugs.

Here’s a handy table summarizing the tools and materials you might need:

Inspecting the Block

After cleaning, take a moment to inspect the block for any cracks or damage. If you find any issues, you might need to consult a professional.

Selecting the Correct Size and Type of Freeze Plugs

Getting the right freeze plugs is crucial for a successful and leak-free installation. A mismatched plug can lead to frustrating leaks or even engine damage down the road. This section will guide you through the process of determining the correct size and type for your specific engine.

Measuring the Freeze Plug Hole

The most accurate way to determine the size you need is to measure the existing freeze plug holes. If the old plugs are still in place, carefully remove one using a punch and hammer, or a specialized freeze plug removal tool. Once removed, measure the diameter of the hole using a caliper or a ruler for a close approximation. Be sure to measure across the widest part of the hole. If the engine block is bare, you can still measure the holes directly.

Identifying the Freeze Plug Type

Freeze plugs come in a few different types, each designed for specific applications and materials. The most common types are cup, disc (also known as expansion), and rubber expansion plugs.

Using Resources to Find the Right Plug

You’re not alone in this process! Several resources can help you identify the correct freeze plug size and type for your engine. Your vehicle’s repair manual is an excellent starting point. It often lists the specific part numbers required. If you don’t have a repair manual, most auto parts stores have catalogs or online databases that you can search by year, make, and model of your vehicle. When searching online, be as specific as possible with the engine code if you know it. This helps ensure you get the right fit. For older or less common vehicles, contacting a specialist or engine rebuilder can be invaluable. They can often identify the correct plug based on their experience. Beyond these resources, online forums dedicated to specific car models can also be a great source of information, as other enthusiasts may have already tackled the same job. When ordering, double-check the measurements and specifications listed against your own to avoid any surprises. Ordering a few extra plugs is also a good idea, just in case one gets damaged during installation. Remember, accurately identifying the correct plug is the foundation of a successful repair, so take your time and utilize the resources available. Investing a little extra effort in this stage will save you headaches and potential problems in the future.

Applying Sealant to the Freeze Plug (If Necessary)

Freeze plugs, also known as core plugs or expansion plugs, are essential components in your engine block. They protect the engine from cracking due to coolant expansion during freezing temperatures. While the name suggests their primary purpose is to prevent freezing damage, they actually serve as a fail-safe in case the coolant expands due to overheating as well. When installing new freeze plugs, the question of using sealant often arises. Let’s delve into this topic to understand when and how to apply sealant effectively.

In many cases, a thin layer of sealant can provide extra insurance against leaks. However, modern freeze plugs often come with a pre-applied sealant, usually in the form of a dry film or a light coating. Check your freeze plug packaging or manufacturer’s instructions to determine if your plugs are pre-sealed. If they are, additional sealant is usually unnecessary and can even be detrimental, hindering proper installation and potentially causing leaks.

If your freeze plugs don’t have pre-applied sealant, or you’re working on an older engine, applying a thin, even layer of sealant can be beneficial. The best type of sealant to use is a specialized engine block sealant, sometimes called “well sealant” or “expansion plug sealant.” This type of sealant is designed to withstand the high temperatures and pressures found within an engine’s cooling system. Avoid using general-purpose RTV silicone, as it may not be compatible with coolant and could break down over time. Also, refrain from using anaerobic sealants, commonly used for threaded fittings, as they aren’t designed for this application.

When applying sealant, a little goes a long way. Apply a thin bead around the outer rim of the freeze plug’s flange, the part that contacts the engine block. Avoid getting sealant on the inside face of the plug, as this can interfere with its proper seating. Too much sealant can squeeze out into the coolant passages when the plug is installed, potentially clogging the cooling system. A small amount, just enough to fill any microscopic imperfections in the block’s surface, is all that’s needed. The goal is to create a watertight seal, not to glue the plug in place.

Sealant Types and Their Suitability:

Remember to carefully clean the freeze plug bore in the engine block before installing the new plug. Remove any rust, debris, or remnants of old sealant. A clean surface ensures optimal contact and a better seal. After applying the sealant (if necessary), install the freeze plug promptly, following the correct installation procedure for your specific engine. Consult your vehicle’s repair manual for the proper installation method and torque specifications, if applicable.

Positioning and Installing the Freeze Plug with a Setting Tool

Alright, so you’ve got your engine block prepped and your new freeze plugs ready to go. Now comes the tricky part: getting those plugs seated correctly. This is where a proper freeze plug installation tool becomes your best friend. Using a hammer alone can easily damage the plug or distort it during installation, leading to leaks down the road. A setting tool ensures even pressure distribution, resulting in a secure and leak-free seal.

Choosing the Right Setting Tool

Freeze plug installers come in various shapes and sizes, designed to accommodate different plug diameters and engine block configurations. You’ll want to choose a tool that matches the diameter of your freeze plug for the best results. Some common types include cup-type installers and stepped installers. Cup-type installers have a concave end that fits over the plug’s outer edge, while stepped installers have multiple diameters to accommodate various plug sizes. Check your repair manual or consult with a parts specialist to determine the correct tool for your specific application.

Preparing the Freeze Plug and Bore

Before installing the freeze plug, ensure the block’s bore is clean and free of any debris or rust. A light coating of sealant designed for freeze plugs can be applied to the bore’s outer edge. This helps create a watertight seal and prevents corrosion. Next, lightly lubricate the outside edge of the freeze plug with a thin layer of engine oil or assembly lube. This will help the plug slide into the bore smoothly and reduce friction during installation.

Positioning the Freeze Plug

Carefully position the freeze plug in the bore, making sure it’s centered and flush with the surrounding surface of the engine block. The plug should sit squarely in the opening without any tilting or unevenness. This step is crucial for achieving a proper seal. Double-check the plug’s alignment before proceeding with the installation process, as any misalignment can compromise the seal and lead to leaks.

Installing the Freeze Plug

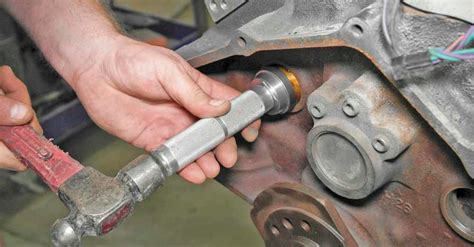

With the freeze plug properly positioned, place the setting tool over the plug, ensuring it’s centered and making full contact with the plug’s outer edge. Now, using a hammer, deliver firm and controlled blows to the setting tool. The key is to apply even pressure across the plug’s surface. Avoid striking the tool off-center, as this can deform the plug. Continue tapping until the plug is fully seated and flush with the block. You’ll typically hear a change in tone as the plug bottoms out in the bore. Over-driving the plug can damage it, so stop once it’s flush. Here’s a handy table summarizing the installation steps:

Once installed, inspect the plug to ensure it’s seated correctly and there are no visible gaps or deformations. Wipe away any excess sealant and you’re good to go. Remember, patience and precision are key to a successful freeze plug installation. Taking your time and using the right tools will prevent headaches down the line.

Installing Freeze Plugs with a Hammer and Punch (Alternative Method)

While specialized installation tools offer the most consistent results, a hammer and punch can be used to install freeze plugs in a pinch. This method requires a bit more finesse and carries a slightly higher risk of damaging the plug or the engine block, but with careful execution, it can be done effectively. It’s particularly useful for DIYers working in situations where specialized tools are unavailable.

Preparation is Key

Before you begin hammering, meticulous preparation is essential. Clean the block’s freeze plug bore thoroughly. Any rust, debris, or old sealant can interfere with a proper seal. A wire brush or emery cloth works well for this purpose. Lightly lubricate the bore and the outside of the new freeze plug with engine oil or assembly lube. This aids insertion and helps to prevent the plug from binding or distorting during installation.

Selecting the Right Punch

Choosing the right punch is crucial for success. Ideally, you want a punch with a slightly domed or convex face that’s just slightly smaller in diameter than the inside diameter of the freeze plug. A flat-faced punch concentrates the force on a smaller area, increasing the risk of cracking or deforming the plug. Avoid using punches with sharp or pointed ends, as these will definitely damage the plug. A brass or soft steel punch is preferable to a hardened steel punch to minimize the chance of marring the plug’s surface. If you’re unsure about sizing, check with a local auto parts store for a punch specifically designed for freeze plug installation.

Positioning and Initial Taps

Position the freeze plug centrally within the bore. Make absolutely certain it’s aligned correctly before you start hammering. A misaligned plug can become stuck or create a weak seal. Once the plug is seated squarely, start with gentle taps using the punch and hammer. The goal is to gradually drive the plug inwards, ensuring even contact around its circumference. Avoid heavy blows, as these can cause the plug to buckle.

The Art of the Tap

Tap the outer rim of the plug, working your way around the circumference in a star pattern. This helps to ensure even seating and prevents the plug from tilting. Think of it like tightening lug nuts – you tighten them in a staggered pattern to ensure even pressure. Listen for a consistent tone as you tap. A dull thud might suggest the plug isn’t seated properly or that the block surface isn’t even. If you encounter resistance or hear a metallic clang, stop immediately and check for obstructions or misalignment.

Setting the Plug

As you continue tapping, the plug will eventually seat fully. You’ll know this by a change in the sound – it will become more resonant. The plug should be flush or slightly recessed within the bore. Over-driving the plug can damage it or the block, so stop hammering as soon as it’s properly seated. Inspect the plug to confirm it’s flush and evenly seated all the way around. A small mirror can help to check the plug’s position in tight spaces.

Important Considerations for Different Materials

The material of the freeze plug impacts the installation process. Brass plugs are generally softer and easier to install with a hammer and punch, while steel plugs require more force and care to prevent cracking. Here’s a quick breakdown:

Understanding the nuances of each material will contribute significantly to a successful installation.

Testing for Leaks After Freeze Plug Installation

Once you’ve meticulously tapped in your new freeze plugs, it’s absolutely crucial to ensure they’re properly sealed and won’t cause any leaks down the line. A leaking freeze plug can lead to coolant loss, overheating, and potentially catastrophic engine damage. Therefore, taking the time to test for leaks is a non-negotiable step in this process. Here’s how you can thoroughly check your handiwork:

Pressure Testing the Cooling System

The most effective way to test for leaks is by pressure testing the cooling system. This involves using a specialized pressure tester that connects to the radiator or coolant reservoir. The tester pumps air into the system, creating pressure that simulates normal operating conditions. This pressure will reveal any weak points or leaks around the newly installed freeze plugs.

How to Perform a Pressure Test

First, make sure the cooling system is completely filled with coolant. Connect the pressure tester according to the manufacturer’s instructions. Typically, you’ll attach it to the radiator cap opening or a designated pressure testing port. Pump the tester to the pressure specified in your vehicle’s repair manual. Usually, this pressure is between 15 and 20 PSI. Once the pressure is reached, observe the gauge. If the pressure holds steady, your freeze plugs are likely sealed tight. However, if the pressure drops, you have a leak somewhere in the system. Carefully inspect the area around each freeze plug for any signs of coolant weeping or dripping. A small mirror and a flashlight can be incredibly helpful for spotting leaks in tight spaces.

Interpreting the Results

A slow pressure drop indicates a minor leak, while a rapid drop signifies a more significant issue. If you detect a leak, carefully examine the area around the leaking freeze plug. Sometimes, a minor leak will seal itself after the engine runs for a bit as the expanding metal creates a tighter seal. However, a consistent leak requires removing and reinstalling the offending freeze plug. Ensure the sealing surface is clean and free of debris before installing a new plug.

Visual Inspection

While a pressure test is the most reliable method, a visual inspection can also help identify obvious leaks. After filling the cooling system, let the engine run for a few minutes. Then, carefully examine the area around each freeze plug. Look for any signs of coolant seepage or dripping. Keep in mind that a small amount of seepage around a newly installed plug can be normal and may seal itself over time.

Checking the Coolant Level

Monitor your coolant level closely for a few days after installing the freeze plugs. A consistently dropping coolant level, even without visible leaks, can indicate a hidden leak, possibly from a freeze plug. This is especially important to check after the engine has cooled down completely, allowing the system to fully depressurize and potentially reveal slow leaks.

Leak Detection Tips and Tricks

Here’s a handy table summarizing some helpful tips and tricks for leak detection:

By diligently following these testing procedures, you can ensure your newly installed freeze plugs are properly sealed, preventing future cooling system problems and keeping your engine running smoothly. Remember to always consult your vehicle’s specific repair manual for precise pressure specifications and procedures.

Installing Freeze Plugs: A Comprehensive Guide

Freeze plugs, also known as core plugs or expansion plugs, are essential components within an engine block. Their primary function is to protect the engine from damage caused by freezing coolant. While seemingly small, their proper installation is crucial to maintain engine integrity. This process requires meticulous attention to detail and the right tools to ensure a leak-free and reliable seal. This guide outlines the best practices for installing freeze plugs, ensuring a secure and long-lasting fit.

People Also Ask About Installing Freeze Plugs

What Tools Do I Need to Install Freeze Plugs?

Proper tools are essential for successful freeze plug installation. Using the correct tools will prevent damage to the plugs and the engine block. The key tools required include:

Essential Tools:

* Hammer and appropriate driver set/installation tool: A hammer and appropriately sized driver or specialized installation tool are crucial for driving the plugs flush with the block surface. Avoid using a punch or chisel, as these can deform the plug and create leaks. A dedicated freeze plug installation tool is highly recommended for consistent and even pressure. * Sealant: While some plugs come pre-coated, a thin layer of sealant can provide added protection against leaks. Ensure the sealant is compatible with engine coolant. * Cleaning supplies: A wire brush, scraper, and degreaser are essential for preparing the block surface. A clean surface is crucial for a good seal. * Safety glasses and gloves: Always protect your eyes and hands during this process.

How Do I Prepare the Engine Block for Freeze Plug Installation?

Preparation is key to a successful installation. Thoroughly cleaning the block’s freeze plug recesses is crucial. Any debris, rust, or old sealant will interfere with the new plug’s ability to seal properly.

Cleaning and Inspection:

* Clean the recesses: Use a wire brush and scraper to remove any old sealant, rust, or debris from the freeze plug recesses. Clean the surrounding area as well to ensure proper seating. * Inspect the block: Carefully inspect the block for any cracks or damage around the recesses. Any damage may require professional repair before proceeding. * Degrease the area: Use a degreaser to remove any oil or grease that may prevent the sealant from adhering properly.

What is the Proper Installation Technique for Freeze Plugs?

Installing freeze plugs correctly requires precise and even force. Overdriving the plugs can cause damage, while underdriving them will result in leaks.

Installation Steps:

* Apply sealant (if necessary): If your plugs are not pre-coated, apply a thin layer of sealant to the outer rim of the plug. * Position the plug: Carefully position the plug in the recess, ensuring it is centered. * Drive the plug: Using the appropriate driver or installation tool, drive the plug straight into the recess until it is flush with the block surface. Apply even pressure to avoid deforming the plug. * Inspect for leaks: After installing all the plugs, fill the cooling system and check for leaks.

How Do I Know if a Freeze Plug is Installed Correctly?

A correctly installed freeze plug will sit flush with the engine block surface and will not leak. A visual inspection after filling the cooling system is the best way to confirm a proper seal.

Checking for Correct Installation:

* Visual inspection: Ensure all plugs are flush with the block and there are no signs of deformation. * Pressure test: If possible, perform a pressure test on the cooling system to ensure there are no leaks. * Monitor for leaks: After running the engine, monitor the area around the freeze plugs for any signs of coolant leaks.
