7 Steps to Install a Well Pressure Tank (and Why You Need One!)

Ensuring a consistent and reliable water supply in your home hinges on the proper installation of your well pressure tank. This seemingly complex task, however, can be accomplished with careful planning and execution, even by a dedicated DIY enthusiast. A well pressure tank not only provides a steady stream of water at your faucets, but also protects your well pump from short cycling, significantly extending its lifespan. Furthermore, the stored water within the tank acts as a buffer against pressure fluctuations, preventing that annoying pulsing effect when you turn on a tap. This guide will walk you through the essential steps to install a pressure tank on your well system, offering clear instructions and practical advice to ensure a successful installation. From selecting the right location and connecting the necessary piping, to setting the correct air pressure and testing the system, we’ll cover everything you need to know to enjoy the benefits of a properly functioning well pressure tank. So, let’s dive in and transform your water supply.

Firstly, before commencing any installation, it’s crucial to gather the necessary tools and materials. This includes the pressure tank itself, appropriately sized pipe fittings and connectors, Teflon tape, a pressure gauge, and a bicycle pump or air compressor. Additionally, ensure you have the necessary safety equipment, such as gloves and eye protection. Next, choose a suitable location for the tank. Ideally, the tank should be installed in a dry, accessible area close to the well pump, yet protected from freezing temperatures. Once the location is determined, carefully shut off the power to the well pump and drain the existing water lines. Subsequently, connect the discharge pipe from the well pump to the inlet port of the pressure tank, ensuring all connections are tightly sealed with Teflon tape. Moreover, connect a pressure gauge to the tank’s air valve to monitor the air pressure, which is critical for proper operation. Finally, install a pressure switch, a vital component that controls the pump’s activation and deactivation based on the water pressure within the tank. This careful preparation and methodical connection process lays the foundation for a robust and efficient well water system.

After completing the plumbing connections, the next crucial step involves setting the correct air pressure within the tank. This pressure should be set approximately 2 PSI below the pump’s cut-in pressure. The cut-in pressure is the pressure at which the pressure switch signals the pump to turn on and refill the tank. To adjust the air pressure, use a bicycle pump or air compressor, carefully monitoring the pressure gauge on the tank. Once the correct air pressure is established, it’s time to restore power to the well pump and observe the system as it fills with water. As the tank fills, the pressure will gradually increase, and the pump should shut off automatically when the cut-out pressure is reached. The cut-out pressure, typically set 20-30 PSI above the cut-in pressure, is the point at which the pressure switch signals the pump to turn off. Finally, after the system has stabilized, test all faucets and appliances in your home to ensure consistent water pressure and flow. By meticulously following these steps and conducting thorough testing, you can confidently enjoy the benefits of a properly installed and functioning well pressure tank, guaranteeing a reliable and consistent water supply for your home.

Determining the Correct Pressure Tank Size and Location

Tank Size

Picking the right size pressure tank is key for a smooth-running water system. A tank that’s too small will cycle on and off too frequently, leading to premature pump wear and tear. Imagine your pump as a marathon runner – short bursts of intense activity will tire it out much faster than a steady pace. Conversely, a tank that’s too large can lead to stagnant water and potential bacterial growth, not to mention wasted space and money. Finding that Goldilocks size – just right – involves understanding your household water needs and the specifics of your well pump.

A crucial factor in sizing your tank is the gallons per minute (GPM) output of your well pump. This information can usually be found on the pump itself or in the manufacturer’s documentation. The higher the GPM, the more water your pump delivers, and consequently, the larger the tank you’ll need to accommodate that flow. Think of it like a reservoir – a larger reservoir is needed to hold more water.

Another factor is the drawdown capacity of your well. Drawdown refers to the difference between the static water level (when the pump is off) and the pumping water level (when the pump is on). A larger drawdown generally necessitates a larger pressure tank. It’s like choosing the right size bucket for a well – a deeper well requires a bigger bucket to bring up enough water.

Finally, consider your household water usage. How many bathrooms do you have? Do you frequently run appliances like dishwashers and washing machines? These factors contribute to your peak water demand, which influences the tank size. A larger household with higher water demand naturally needs a bigger tank to ensure consistent water pressure during peak usage times. It’s similar to choosing a fuel tank for a car – a larger tank is necessary for longer trips.

To give you a general idea, here’s a simplified table showing the suggested tank size based on well pump GPM and household size. Keep in mind that this is just a rough guide, and consulting a professional is always recommended.

Tank Location

Placement Considerations

The location of your pressure tank is just as important as its size. Ideally, the tank should be placed as close to the well pump as possible. This minimizes friction loss in the pipes and ensures efficient water delivery. Imagine a shorter hose – the water flows more easily than through a longer, more convoluted hose. Plus, a closer proximity reduces the strain on the pump, extending its lifespan.

Environmental Factors

Protect your pressure tank from the elements. Freezing temperatures can damage the tank, so insulate it or locate it in a heated space. Likewise, excessive heat can shorten the lifespan of the tank components. A cool, dry, and well-ventilated area is the sweet spot. Think of it like storing food – a cool, dry pantry keeps food fresh longer.

Accessibility for Maintenance

Ensure easy access to the pressure tank for regular maintenance. You’ll need to check the air pressure and occasionally drain the tank to remove sediment. A cramped, inaccessible location will make these tasks difficult. Imagine changing a tire – you need enough space to work comfortably and safely.

Gathering Necessary Tools and Materials

Alright, so before we dive into the nitty-gritty of actually installing your pressure tank, let’s make sure you’ve got everything you need. Having all the right tools and materials on hand will make the process much smoother and save you those frustrating trips back and forth to the hardware store. Think of it like baking a cake – you wouldn’t want to start only to realize you’re out of sugar, right? So, let’s gather our ingredients!

Essential Plumbing Tools

You’ll need a few basic plumbing tools to get the job done. A pipe wrench is crucial for tightening and loosening pipe fittings. Make sure you have one that’s the appropriate size for your pipes. A Teflon tape is also essential; this will help create a watertight seal on your threaded connections. A tubing cutter is handy for cutting copper or PEX tubing to the right length. And don’t forget your trusty adjustable wrench for those miscellaneous tasks.

Plumbing Materials: Piping and Fittings

Now, let’s talk about the plumbing materials you’ll need. The specific types and sizes will depend on your existing plumbing setup, but here’s a general rundown. First, you’ll need the pressure tank itself. Choose one that is appropriately sized for your household needs. A larger tank will provide more water between pump cycles, but it also takes up more space. Next, you’ll need some piping to connect the tank to your well system. This could be copper, PEX, or PVC, depending on your preference and local codes. Be sure to get the correct diameter. You’ll also need various fittings to connect everything together – things like tees, elbows, couplings, and adapters. Don’t forget a pressure gauge to monitor the tank’s pressure and a pressure switch to control your well pump.

Finally, let’s not overlook some essential safety gear. Safety glasses are a must to protect your eyes from flying debris or splashing water. Work gloves will protect your hands and provide a better grip. And if you’re working in a tight space, a headlamp or flashlight can be incredibly helpful. It’s always better to be safe than sorry!

Quick Checklist and Material Details

Here’s a handy table summarizing the essential tools and materials you’ll need. Remember, the specific sizes and types might vary depending on your individual setup, so double-check your requirements before heading to the store.

Shutting Off the Water Supply and Relieving System Pressure

Before you even think about touching a wrench, safety first! We need to completely de-pressurize the system. This prevents any unexpected sprays of water and ensures you can work safely and effectively.

Shutting Off the Power to the Well Pump

Locate your well pump’s power switch. This is often a dedicated breaker in your electrical panel, but it could also be a separate disconnect switch near the wellhead. Turn off the power to the pump to prevent it from running while you’re working.

Closing the Main Water Supply Valve

Find your main water supply valve. This is typically located where the water line enters your house, often in a basement, utility room, or crawl space. Turn the valve clockwise to shut off the water flow to your home. This isolates the pressure tank and plumbing system from the main water supply.

Relieving System Pressure

Now that the water is off, we need to release the remaining pressure trapped in the system. This is crucial for safe installation. Here’s a breakdown of how to do this effectively:

Opening a Faucet at the Lowest Point in Your House

Gravity helps us here. Find the lowest faucet in your house, usually in a basement or on the ground floor. Open the cold water tap fully. This will allow water to drain out and begin to depressurize the system. You’ll hear air hissing out as the pressure drops – this is perfectly normal.

Opening an Outside Faucet (If Available)

If you have an outdoor faucet or hose bibb, open it as well. Since these are often lower than indoor faucets, they provide another avenue for water and pressure to escape. Make sure the hose is disconnected from the faucet so water can flow freely.

Flushing Toilets

Flushing your toilets a couple of times will further help to release trapped water and pressure from the system. Each flush removes a significant amount of water, contributing to the overall depressurization process.

Monitoring the Pressure Gauge (If Applicable)

If your well system has a pressure gauge, keep an eye on it while releasing pressure. The needle should steadily drop towards zero. Once it reaches zero, you’ve successfully depressurized the system. Even if you don’t have a gauge, allow the water to drain from the open faucets for several minutes to be sure all pressure is released.

Checking for Residual Pressure

After the water stops flowing from the open faucets, it’s a good idea to double-check for any residual pressure. Briefly close and then quickly reopen the lowest faucet. If no water or only a tiny dribble comes out, the system is fully depressurized and safe to work on.

Connecting the Pressure Switch and Gauge

The pressure switch and gauge are vital components of your well system. They work together to control the pump and provide you with information about the water pressure. Accurately connecting these components ensures the smooth operation of your well pump and prevents potential issues like short cycling or damage to the pump.

Understanding the Pressure Switch

The pressure switch is essentially the brain of the system. It monitors the water pressure in the tank and signals the well pump to turn on when the pressure drops below a set “cut-in” pressure and off when it reaches a higher “cut-out” pressure. These pressure settings are adjustable and should be set according to your specific needs and the capabilities of your well pump. A typical residential setting might be 30/50 PSI (pounds per square inch), meaning the pump turns on at 30 PSI and off at 50 PSI.

Understanding the Pressure Gauge

The pressure gauge is a simple but crucial indicator that tells you the current water pressure in the system. It allows you to monitor the pressure and diagnose potential problems. For example, if you see the pressure constantly dropping, it might indicate a leak somewhere in your plumbing.

Preparing for Connection

Before you begin, make sure you have all the necessary tools, including Teflon tape, adjustable wrenches, and possibly a pipe wrench. It’s always a good idea to double-check that the power to the well pump is turned off at the breaker box before starting any work on the pressure switch or gauge. This ensures your safety and prevents accidental starts of the pump. Also, ensure you have a clean, dry work area around the pressure tank. A cluttered space can make the job more difficult and increase the risk of mistakes.

Connecting the Components

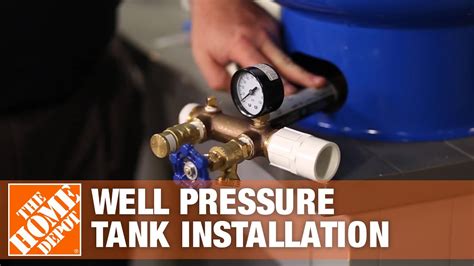

Typically, both the pressure switch and gauge connect to the pressure tank tee. This tee usually has four ports: one for the tank, one for the water line, and two for the switch and gauge. Begin by wrapping Teflon tape clockwise around the threads of the pressure switch and gauge. This creates a watertight seal and prevents leaks. Next, carefully screw the pressure switch and gauge into their respective ports on the tee. Tighten them snugly with an adjustable wrench, but be careful not to overtighten, as this could damage the threads. Some pressure switches have a dedicated ¼-inch port specifically for the pressure gauge. If yours is like this, then the gauge connects directly to the switch, and the switch connects to the tee. Check the manufacturer’s instructions for your specific model to confirm the correct connection method.

Here’s a handy table to help you visualize the connection process:

Once both are connected, check all connections for leaks. It’s better to catch and address a leak now rather than later. After completing the connections, you can turn the power back on to the well pump and observe the pressure gauge to ensure it’s functioning correctly.

Installing the Tank Tee and Drain Valve

This part of the well installation process focuses on setting up the tank tee and drain valve, essential components for proper system function. The tank tee creates a junction for the water to flow into the pressure tank, while the drain valve allows for easy maintenance and winterization.

Preparing for Installation

Before you start wrenching anything, gather your tools and materials. You’ll need the tank tee fitting itself, a drain valve (a ball valve is recommended), Teflon tape, pipe wrenches appropriate for the size of your pipes, and a bucket to catch any spilled water.

Installing the Tank Tee

Locate the section of the water line where you’ll install the tank tee. This is typically close to the pressure tank itself. Carefully cut the pipe, ensuring a clean, straight cut. Remove any burrs from the cut ends of the pipe. Now, apply Teflon tape to the male threads of the tank tee. Wrap the tape clockwise around the threads, ensuring a snug and even application. This will create a watertight seal when you connect the pipe sections. Next, thread the pipe sections into the tank tee, tightening with the pipe wrenches. Don’t overtighten, as this can damage the fittings.

Installing the Drain Valve

The drain valve gets installed on the bottom portion of the tank tee. This placement allows you to completely drain the tank when needed. Just like with the tank tee, wrap the male threads of the drain valve with Teflon tape in a clockwise direction. Tighten the valve onto the tank tee with a pipe wrench, again being careful not to overtighten. Underneath the drain valve, consider adding a short nipple and a cap for a cleaner look and to protect the threads.

Testing the Connections

Once the tank tee and drain valve are in place, it’s crucial to test for leaks. Slowly turn the water back on and carefully inspect all the connections around the tank tee and drain valve. Look for any signs of dripping water. If you spot a leak, tighten the connection slightly. If the leak persists, you may need to disassemble the fitting, clean the threads, re-apply Teflon tape, and reassemble. If you added the nipple and cap below the drain valve, check that connection as well.

Important Considerations for Tank Tee and Drain Valve Installation

Choosing the right materials is vital for a successful installation. Ensure your tank tee and drain valve are made of materials compatible with your well water chemistry. Brass, galvanized steel, and PVC are common options, but certain water conditions may require specialized materials. Consult with a well water professional if you’re unsure. The size of the tank tee and valve must also match the diameter of your water line. Using mismatched sizes can lead to pressure issues and leaks. Below is a helpful table outlining common pipe sizes and their corresponding tank tee and valve sizes:

Remember, local plumbing codes may have specific requirements for tank tee and drain valve installation. It’s always a good idea to check your local regulations before starting any plumbing project.

Connecting the Water Line to the Pressure Tank

Alright, so you’ve got your pressure tank in place, and now it’s time to hook it up to the water line. This is a crucial step, as a proper connection ensures a leak-free and efficient water supply. Let’s dive into the details.

Preparing for the Connection

Before you start wrenching things together, gather your tools and materials. You’ll need a pipe wrench, Teflon tape, and possibly pipe sealant, depending on the type of connection you have. Make sure the water supply to the well is shut off to avoid any unexpected showers. It’s also a good idea to drain the existing plumbing lines to relieve any pressure.

Essential Tools and Materials

Having the right tools at your disposal makes the job much smoother. Here’s a quick checklist:

Connecting the Pipes

Now for the main event. Locate the water inlet on your pressure tank. It’s typically a threaded connection. Clean the threads of both the tank inlet and the water line pipe to ensure a good seal. Wrap the male threads of the water line pipe with Teflon tape, winding it clockwise around the threads. This creates a barrier that prevents water from seeping through the threads. Don’t overtighten the tape; two to three wraps are usually sufficient. If you are using pipe sealant, apply a thin layer over the Teflon tape. Now, carefully thread the water line pipe into the tank inlet. Use your pipe wrench to tighten the connection, but don’t overdo it. Overtightening can damage the threads or the tank itself. Aim for a snug, secure fit. Different types of connections exist (e.g., compression fittings, sweat fittings), but the general principle of ensuring a clean, sealed connection remains the same.

Once the connection is made, double-check for any leaks. Slowly turn the water supply back on and carefully inspect the connection point. If you see any drips, tighten the connection slightly. If the leak persists, you might need to disassemble the connection, clean the threads again, and reapply Teflon tape or sealant. Remember, patience is key here. Taking the time to make a proper connection will save you from potential headaches down the road. Consider using a pressure gauge to monitor the tank’s pressure as it fills. This helps ensure the system is operating within the correct pressure range and identifies any potential issues early on. After the tank is full and pressurized, check all connections again for any signs of leaks. It’s better to catch and address a small leak now than to deal with a larger, more problematic leak later. By following these detailed steps, you can confidently connect your pressure tank to the water line and enjoy a reliable and efficient water system.

Ensuring all connections are tight and leak-free will contribute to the longevity and efficiency of your well water system. Regularly checking these connections can help prevent future problems and maintain optimal performance.

Installing a Pressure Tank on a Well: A Comprehensive Guide

Installing a pressure tank correctly is crucial for a well water system’s efficient and reliable operation. This process involves several key steps, from selecting the right tank size to ensuring proper plumbing and pressure settings. While a professional plumber is always recommended for complex installations, a knowledgeable homeowner can tackle this project with careful planning and execution. This guide outlines the essential steps involved in installing a pressure tank on a well system.

Begin by choosing the appropriate tank size based on your household’s water demand and well pump capacity. Next, select a suitable location for the tank, considering factors like accessibility for maintenance, protection from freezing temperatures, and proximity to the well pump. Proper plumbing is paramount; use appropriate piping materials and ensure all connections are leak-free. Accurately setting the pre-charge pressure in the tank is critical for optimal performance and preventing short cycling of the pump. Finally, after installation, thoroughly test the system for leaks and proper pressure maintenance.

Safety should be a top priority throughout the process. Always disconnect the power supply to the well pump before working on any plumbing connections. If you are unsure about any aspect of the installation, consult a qualified plumber to ensure the job is done safely and correctly. Proper installation will extend the lifespan of your pressure tank and ensure a consistent water supply for your home.

People Also Ask About Installing a Pressure Tank on a Well

Sizing and Location

How do I determine the right size pressure tank for my well?

Selecting the correct pressure tank size depends on several factors, including your household’s water usage, the well pump’s flow rate (gallons per minute), and the desired drawdown capacity. Drawdown refers to the amount of water the tank holds before the pump cycles on. A larger drawdown capacity generally results in fewer pump cycles, extending the pump’s lifespan. Online calculators and plumbing professionals can help determine the ideal tank size for your specific needs.

Where is the best place to install a pressure tank?

The ideal location for a pressure tank is indoors, close to the well pump, and protected from freezing temperatures. It should also be easily accessible for maintenance and pressure checks. A dry, level surface is essential for proper installation and stability. Avoid installing the tank in direct sunlight or areas subject to extreme temperature fluctuations.

Installation and Maintenance

What are the essential plumbing connections for a pressure tank?

The pressure tank connects to the well pump discharge pipe, the water supply line to the house, and a drain valve for periodic maintenance. Using appropriate pipe fittings and sealant is crucial to prevent leaks. A pressure gauge and a pressure switch are also essential components for monitoring and controlling the system’s pressure.

How do I set the pre-charge pressure in my pressure tank?

The pre-charge pressure should be set 2 PSI below the pump’s cut-in pressure. You can find the cut-in pressure listed on the pressure switch. To adjust the pre-charge, use a tire pressure gauge and an air compressor or bicycle pump to add or release air from the tank’s air valve while the system is off and the tank is drained.

How often should I check my pressure tank?

It’s recommended to check the pressure tank’s air pressure every few months and drain the tank annually to remove any sediment or air buildup. Regularly inspecting the tank for leaks and corrosion is also important for maintaining its efficiency and longevity. If you notice any issues, consult a qualified plumber.
