5 Steps to Install a Leveling Kit: A DIY Guide

Transforming your truck’s stance and enhancing its off-road capabilities doesn’t require a trip to a specialized shop. Surprisingly, installing a leveling kit is often a manageable DIY project, even for those with moderate mechanical skills. Imagine achieving that aggressive, leveled look and gaining extra tire clearance without breaking the bank. This guide will walk you through the process, providing clear and concise instructions, allowing you to conquer this upgrade with confidence. From prepping your vehicle to tightening the final bolts, we’ll cover every crucial step, ensuring you’re equipped with the knowledge to achieve a professional-grade installation. Furthermore, we’ll delve into the essential tools and safety precautions, empowering you to tackle this project safely and efficiently. Get ready to elevate your truck’s appearance and performance, taking pride in a job well done.

First and foremost, before you even think about lifting a wrench, gather all the necessary tools. This includes a jack and jack stands rated for your truck’s weight, a comprehensive socket set, torque wrench, and various hand tools like pliers and screwdrivers. Additionally, having a friend assist can make the process smoother and safer. Once you’ve assembled your tools, prepare your truck by parking it on a level surface, engaging the parking brake, and chocking the rear wheels. Next, consult your leveling kit’s specific instructions, as they will outline the precise steps for your particular vehicle and kit. Generally, the process involves loosening and removing specific suspension components, such as strut assemblies or torsion keys. Subsequently, you’ll install the leveling kit components, carefully following the manufacturer’s torque specifications. Remember, precision is key during this phase to ensure proper alignment and prevent future issues. Moreover, take your time and double-check each step, ensuring all components are securely fastened.

After the leveling kit components are installed, meticulously reassemble the suspension components you previously removed. Consequently, ensure all bolts and nuts are tightened to the manufacturer’s specified torque. This is critical for maintaining the integrity of your suspension system and preventing any unwanted noises or vibrations. Once the installation is complete, lower your truck from the jack stands and take it for a test drive. Pay close attention to the steering and suspension feel, noting any unusual noises or vibrations. Finally, and perhaps most importantly, it’s imperative to get a professional wheel alignment after installing a leveling kit. This will ensure your truck drives straight and true, preventing premature tire wear and maximizing handling performance. In conclusion, installing a leveling kit can be a rewarding DIY project, granting you the satisfaction of enhancing your truck’s aesthetics and functionality while saving money. However, always prioritize safety and precision throughout the process, and don’t hesitate to consult a professional if you encounter any challenges.

Gathering Your Tools and Materials

Alright, before you dive headfirst into leveling your truck, you’ll need to round up a few essential tools and materials. Having everything at your fingertips will make the process much smoother and save you from frustrating trips back and forth to the hardware store mid-install. Trust me, nobody wants that.

First things first, you’ll need the leveling kit itself. Make sure it’s the correct one for your specific truck’s year, make, and model. Double-check this – a kit designed for a slightly different setup could cause compatibility problems down the line. Once you’ve got the right kit, lay out all the components and familiarize yourself with them. Referencing the provided instructions is a great way to get a visual sense of what goes where.

Now, let’s talk tools. You’ll need a good set of metric sockets and wrenches, as most truck suspension components use metric fasteners. A torque wrench is absolutely essential for tightening everything to the manufacturer’s specifications, which helps prevent damage and ensures everything is secure. A floor jack and some jack stands are crucial for lifting your truck safely. Never work under a vehicle supported only by a jack – it’s a serious safety hazard.

You’ll also need some penetrating oil. This stuff is like magic for loosening stubborn, rusted-on bolts. Spray it on any bolts you’ll be removing a day or two before you start the installation. This gives it time to work its way in and break down the rust, making the bolts much easier to remove. A rubber mallet can come in handy for persuading parts into place without damaging them.

Measuring tape is necessary for checking the ride height before and after the installation. This ensures you achieve the desired level and that both sides of the truck are even. Having some wheel chocks is a good safety precaution as well. They help prevent the truck from rolling while you’re working on it. Finally, keep a few shop rags or paper towels handy for cleaning up any grease or grime.

Essential Tools and Materials Checklist

Here’s a handy table summarizing the essential tools and materials:

Optional but Helpful Items:

A few extra items that might make the job easier include a breaker bar (for extra leverage on stubborn bolts), safety glasses (to protect your eyes), and work gloves (to keep your hands clean).

Preparing Your Vehicle for the Installation

Getting your vehicle ready for a leveling kit installation is crucial for a smooth process and a safe outcome. It’s not just about having the right tools; it’s about setting the stage for a successful upgrade.

Gathering Your Tools and Materials

Having the right tools at your fingertips will make the installation much easier. You’ll need a good set of sockets and wrenches, including metric sizes if your vehicle uses them. A torque wrench is essential for tightening bolts to the correct specifications, preventing damage and ensuring safety. Jack stands are a must-have for safely supporting the vehicle while you work. A good floor jack makes lifting easier and safer than the factory-supplied scissor jack. Having penetrating oil handy can help loosen stubborn bolts, and a tape measure is useful for checking ride height. Don’t forget safety glasses and gloves to protect yourself.

Prepping the Vehicle Itself

This step is more than just parking your vehicle on a level surface, though that’s definitely the first thing you should do. Choose a solid, level surface like a concrete driveway or garage floor. Next, you’ll want to loosen the lug nuts on the wheels you’ll be working on. Doing this while the vehicle is on the ground provides more leverage and prevents the wheels from spinning. After loosening the lugs, carefully jack up the vehicle using the appropriate jacking points specified in your owner’s manual. Securely support the vehicle with jack stands placed on the frame rails or other designated support points. Never rely solely on a jack. Double-check the stability before proceeding. Now it’s time to remove the wheels entirely. Keep them nearby and organized. With the wheels off, take a moment to inspect the suspension components you’ll be working with. Look for any signs of wear, damage, or corrosion. Addressing these issues before installing the leveling kit will save you headaches down the road. If your leveling kit requires disconnecting any brake lines or ABS sensors, be sure to consult your kit’s instructions for specific precautions. Sometimes, it’s advisable to remove the front shocks to make installation easier, but again, refer to your kit instructions for guidance. Taking clear “before” photos of your suspension setup is always a smart move. This provides a valuable reference point during installation and can be helpful for troubleshooting or future adjustments. Finally, use some penetrating oil on the bolts securing the struts, shocks, and other suspension components that you’ll be removing. Let it soak in for a few minutes to loosen any rust or grime, making disassembly much smoother. This extra step can save you a lot of frustration and potential damage to your components.

Parts Checklist

Safety Precautions

Safety is paramount during any vehicle modification. Always work in a well-ventilated area. Chock the rear wheels to prevent the vehicle from rolling. Wear safety glasses and gloves to protect your eyes and hands. Consult your vehicle’s repair manual and the leveling kit instructions thoroughly before beginning the installation. If you are unsure about any step, consult a qualified mechanic. Remember, working on your vehicle can be rewarding, but taking shortcuts on safety can lead to serious injury or damage.

Installing the Leveling Kit Spacers or Struts

This section dives into the core of the leveling kit installation: putting the spacers or struts in place. The exact steps will vary depending on your vehicle’s make and model and the specific type of leveling kit you’ve chosen. Always refer to the manufacturer’s instructions provided with your kit for the most accurate and detailed guidance. This guide provides a general overview.

Preparing for Installation

Before you begin, gather your tools and ensure your vehicle is safely parked on a level surface, the parking brake is engaged, and the wheels are chocked. Having a friend to assist can be very helpful.

Disassembling the Suspension Components

You’ll need to access the suspension components. Generally, this involves removing the wheel and tire assembly. Then, depending on your vehicle and kit, you might need to disconnect the brake lines, sway bar links, ABS sensor wires, and potentially the upper control arm. Take photos or make notes as you go, so you remember where everything goes during reassembly.

Installing the Leveling Kit Spacers or Struts

Spacer Installation

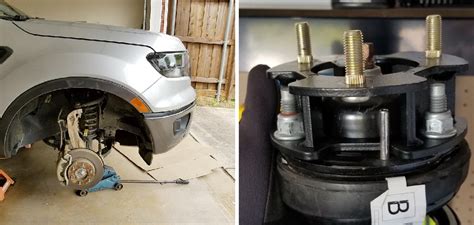

If you’re installing spacers, these typically sit on top of the strut assembly. You’ll carefully position the spacer and then reassemble the strut assembly, ensuring all nuts and bolts are tightened to the manufacturer’s specifications. Using a torque wrench is crucial here to prevent over-tightening or under-tightening, which can lead to problems down the road. Double-check everything is secure before moving on.

Strut Installation

Installing new struts is a bit more involved. After removing the old strut assembly, the new pre-assembled strut is installed in its place. This generally involves lining up the top mount and then securing the lower bolts. Again, torque specifications are critical, so consult your instructions and use a torque wrench. Be mindful of any specific instructions regarding compressing the spring, as this can be dangerous if not done properly. Some kits come with pre-compressed struts, which simplifies the process.

Here’s a quick comparison of spacer vs. strut installation:

After installing either spacers or struts, reattach any components you disconnected earlier, such as brake lines, sway bar links, and ABS sensor wires. Ensure everything is correctly routed and secured. Finally, remount the wheel and tire assembly, tightening the lug nuts in a star pattern. Lower the vehicle and torque the lug nuts to the manufacturer’s recommended specification.

A crucial final step is to have your vehicle’s alignment checked and adjusted by a professional. The changes to your suspension geometry necessitate this to prevent uneven tire wear and ensure optimal handling.

Checking and Adjusting the Front-End Alignment

After installing your leveling kit, it’s super important to get your front-end alignment checked and likely adjusted. Think of it like this: you’ve just changed the geometry of your suspension, so the angles of your wheels are probably a bit off. Driving with a misaligned front end can lead to some not-so-fun consequences, like uneven tire wear (meaning you’ll have to replace them sooner than you should) and squirrelly handling, making your truck feel less stable on the road. Trust me, it’s not a good feeling.

Now, while you *can* try to do this at home, I highly recommend taking your truck to a professional alignment shop. They have the specialized equipment and expertise to get things dialed in perfectly. It’s a worthwhile investment that will save you money and headaches in the long run.

Signs of Misalignment

Sometimes the signs of a misaligned front end are subtle, and sometimes they’re pretty obvious. Here are some things to watch out for:

• Uneven Tire Wear: Check your tires for unusual wear patterns. If one side of a tire is wearing out faster than the other, or if you’re seeing feathering (where the tread blocks are worn at an angle), it’s a definite red flag.
• Pulling or Drifting: Does your truck pull to one side when you’re driving on a straight, flat road? If so, your alignment is almost certainly off.
• Off-Center Steering Wheel: When you’re driving straight, your steering wheel should be centered. If it’s crooked, that’s another indicator of an alignment issue.
• Vibration in the Steering Wheel: While this can be caused by other problems, a vibration in your steering wheel, especially at higher speeds, could be related to alignment.

What Happens During an Alignment

At the alignment shop, a technician will use a machine to measure the angles of your wheels and axles. These angles, including camber, caster, and toe, all play a role in how your truck handles and how your tires wear. The technician will then adjust these angles, usually by making tweaks to the tie rods and other suspension components, to bring everything back into spec.

Alignment Angles and Their Impact

Once the alignment is complete, the technician will usually provide you with a printout showing the before-and-after measurements. This allows you to see how far out of spec your alignment was and confirms that it’s now within the manufacturer’s recommended range. After the alignment, your truck should drive straight and true, and your tires should wear evenly, ensuring a smoother, safer, and more economical ride. Don’t hesitate to ask the technician any questions you might have about the process or the results. They’re there to help!

Verifying the Leveling Kit Installation

After you’ve wrestled with those bolts and tightened everything down, it’s time to make sure your leveling kit did its job. This verification process is crucial – it confirms you installed everything correctly and that your truck sits level (or with the desired rake, if that’s your goal). Skipping this step can lead to uneven tire wear, handling issues, and even potential damage to your suspension components down the road. So, grab a tape measure and let’s get to it.

Measuring Hub-to-Fender Height

The most common way to check your leveling kit installation is by measuring the distance from the center of your wheel hub to the bottom edge of your fender. This measurement gives you a clear picture of your vehicle’s ride height at each corner. Before you start, make sure your truck is parked on a level surface. An uneven surface will throw off your measurements and give you inaccurate readings. You’ll need a reliable tape measure for this process.

Recording Your Measurements

Accuracy is key here. Take your measurements at each wheel and jot them down. A simple table can help keep everything organized. You can even create one in a notebook or use a note-taking app on your phone. Here’s an example of how to organize your measurements:

This table allows you to directly compare your before-and-after measurements. Remember those “before” measurements you took? This is where they come in handy! Compare your “after” measurements with your “before” measurements. The front measurements should have increased, reflecting the lift provided by the leveling kit. Ideally, the front and rear measurements should now be very close, indicating a level stance. A slight difference (up to about ¼ inch) is generally acceptable and can be attributed to minor variations in manufacturing and installation. However, any significant difference between the left and right sides of the vehicle, or a large discrepancy between the front and rear, suggests a problem.

Analyzing the Results

Once you have your measurements recorded, it’s time to analyze them. First, compare the driver side front to the passenger side front. These measurements should be very close, ideally within 1/8th of an inch of each other. A larger difference indicates a problem, possibly with the installation on one side. Next, compare the front measurements to the rear measurements. If you were aiming for a perfectly level truck, the front and rear measurements should be almost identical. If you prefer a slight rake (where the rear sits slightly higher than the front), then the rear measurements should be a bit higher. If your measurements are significantly off, double-check your installation. You may need to loosen and retighten some components, or even reinstall the kit. If you’re unsure, it’s always a good idea to consult a professional mechanic.

Finally, take your truck for a test drive on a level surface. Pay attention to the handling. Does the truck pull to one side? Does the steering wheel feel off-center? If so, you may have an alignment issue, a common side effect of installing a leveling kit. If you notice any handling problems, take your truck to a reputable alignment shop to get it checked out. A proper alignment is essential for safe and predictable handling, as well as even tire wear. With your leveling kit installed and verified, you’re ready to hit the road with confidence, knowing your truck not only looks great but also performs at its best!

Installing a Leveling Kit: A Comprehensive Overview

Installing a leveling kit can enhance your vehicle’s aesthetic appeal and off-road capabilities by correcting the factory rake (the difference in height between the front and rear of the vehicle). While a seemingly straightforward modification, proper installation requires attention to detail and a basic understanding of automotive mechanics. This overview emphasizes the importance of careful preparation, proper tool selection, and adherence to manufacturer instructions for a successful installation.

Begin by thoroughly researching the appropriate leveling kit for your specific vehicle make and model. Different kits are designed for various suspension systems and lift heights. Consulting your vehicle’s owner’s manual and reputable online forums can provide valuable insights. Once you’ve selected the right kit, gather the necessary tools, including jack stands, torque wrench, sockets, wrenches, and penetrating oil. A comprehensive list is usually included with the leveling kit instructions.

Safety should be the utmost priority during the installation process. Always work on a level, stable surface and secure the vehicle with jack stands before beginning any work under the vehicle. Chocking the rear wheels provides an additional layer of safety. Follow the manufacturer’s instructions meticulously, paying close attention to torque specifications for all fasteners. Over-torquing or under-torquing can lead to component failure and compromise the vehicle’s safety.

After installing the leveling kit, it is crucial to have a professional wheel alignment performed. Altering the suspension geometry affects the alignment, which can lead to uneven tire wear and handling issues. Finally, periodically inspect the installed components for signs of wear, loose fasteners, or damage. Regular maintenance ensures the leveling kit continues to perform as intended and maintains the vehicle’s safety and reliability.

People Also Ask About Installing a Leveling Kit

Do I need special tools to install a leveling kit?

While some basic hand tools are typically sufficient, the specific tools required can vary depending on the complexity of the leveling kit and your vehicle’s suspension. Always refer to the manufacturer’s instructions for a complete list of necessary tools. Investing in quality tools can make the installation process smoother and safer.

Can I install a leveling kit myself?

While installation is achievable for mechanically inclined individuals with the proper tools and space, it’s essential to acknowledge the potential risks. Incorrect installation can negatively impact the vehicle’s handling, safety, and warranty. If you are unsure about any aspect of the process, it is highly recommended to seek professional installation.

How long does it take to install a leveling kit?

The installation time can vary based on the complexity of the kit and your experience level. Simple leveling kits can often be installed in a few hours, while more complex systems may require a full day. Always allocate ample time for the installation to avoid rushing and potentially making mistakes.

What is the difference between a leveling kit and a lift kit?

A leveling kit is designed to raise the front of the vehicle to match the height of the rear, eliminating the factory rake. A lift kit raises both the front and rear of the vehicle, providing additional ground clearance. Leveling kits are typically less expensive and less involved to install than lift kits.

Will installing a leveling kit void my warranty?

Modifying your vehicle can potentially void certain aspects of your warranty. It’s crucial to consult your vehicle’s warranty information and discuss the installation with your dealer beforehand. Maintaining proper documentation of the installation and using high-quality parts can help mitigate potential warranty issues.
